CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350

Part nr.: 10045HD MK7

"RACE" Shifter for Golf 7/8 with 6-Speed 02M MQ350

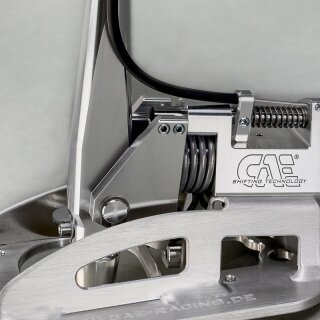

Surface Alu uncoated
Surface
Shiftknob
from
1.255,00 €
  •   Available immediately
CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350

CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350

from
1.255,00 €
  •   Available immediately

impressions and emotions

CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350
CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350
CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350
CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350

About the CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350

CAE Ultra Shifter - Optimised for motor sports with the following features:



CAE Ultra Shifter for vehicles equipped with a VW 02M / J/Q 5 or 6 speed cable transmission, type MQ250, MQ350. Suitable for all VW AG platform vehicles PQ34/A4, PQ35/A5, PQ35/A6. Short and super-precise shifting travel, exclusively H-pattern. The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifter is mounted on the center tunnel and is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.

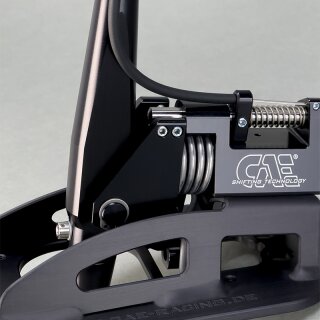

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.

Total height: approx. 420 mm
Total length: approx. 220 mm
Dimensions of base plate: approx. 230 x 115 mm
Shifting travel: approx. 65 mm
Selector travel (transverse direction): approx. 65 mm
Weight (complete): approx. 2,45 kg
Offset of the gear lever knop (back / up): approx. 60 / 130 mm


After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall (2 holes diameter 18mm). The original gear lever must be modified. Find modified gear lever kit (10145KIT) and the suitable gearbox cable bracket (10145WID) under "Accessories" (see below, just MQ350 !!! ).

Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws and Required small parts

Installation Manual for download you will find here behind the "PDF" tab

ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.




Accessories / Spares
  •   Available immediately
CAE Shiftknob Alu anodized
62,00 € *
  •   Available immediately
CAE Gearlever kit / VW 02M/Q MQ350 6-Speed Gearbox
196,00 € *
  •   Available immediately
CAE Plastic Gearknob ( POM )
49,00 € *
  •   Available immediately
CAE Gearshift cable Kit Golf MK 4,5,6 a.equal VW with 02J & 02M Gearboxes
403,00 € *
  •   Low stock level
CAE Gearbox cable bracket for VW 02M/Q MQ350 6-Speed Gearbox
Price on request

technical data

Item information Value
Transmission: 02M/QMQ250MQ350
Brand: VWAudiSeatSkoda
Car-Model: Golf 4Golf 5Golf 6BeetleScirocco 3Bora 4Bora 5Jetta 4Jetta 5Audi TTA3Leon 1POctaviaGolf 8
Item weight: 3 kg

scope of supply

1x CAE Ultra Shifter "RACE" VW Golf 7/8 02M/Q MQ350

Certificates and Downloads

Einbauanleitung (DE) Download
Installation manual (EN) Download

Product safety information

Manufacturer information:

CAE Shifting Technology GmbH
Alte Bottroper Str. 103
45356 Essen
Nordrhein-Westfalen
Deutschland
service(at) cae-racing.de
https://www.cae-racing.de
