About the CAE Ultra Shifter VW Golf 3 / 020
CAE Ultra Shifter - Optimised for motor sports with the following features:
- Universal kit for VW Golf 3 with original rod gear transmissions of type 020 and original Golf 2 engine mounting. For VW motorsport engine mounting necessarily inquire before buying.
- Conversion to cableshift
- Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6-gear transmissions.
- The clutch system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Shifters is intended for vehicles without interior equipment or without a centre console
-

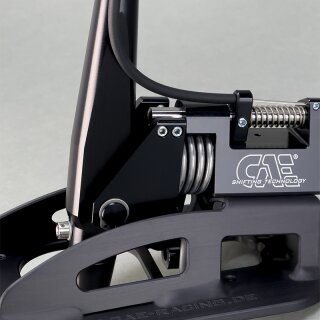

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
Total height: approx. 380 mm Total length: approx. 220 mm Dimensions of base plate: approx. 230 x 115 mm Shifting travel: approx. 65 mm Selector travel (transverse direction): approx. 65 mm Weight (complete): approx. 2,35 kg Offset of the gear lever knop (back / up): approx. 60 / 90 mm After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall. Shifter is delivered as a complete kit including CAE HD gearshift cables.
! Clamping for shift cable have to be welded on the aluminium engine bracket !
technical data
| Item information | Value |
|---|---|
| Transmission: | 020 |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | VW |
| Car-Model: | Golf 3 |
| Item weight: | 4 kg |
scope of supply

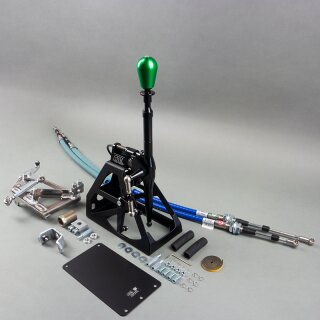

1x CAE Ultra Shifter VW Golf 3 / 020 , Scope of delivery as shown.
