CAE Ultra Shifter VW Corrado 02A

Part nr.: 10007HD 02A

CAE Ultra Shortshifter for VW Corrado with 02A Gearboxes

Surface
Shiftknob

from

1.298,00 €

Choose tax zone / country of delivery

Available immediately

This item has variations. Please select the requested variation.

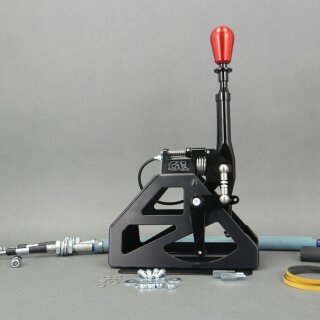

CAE Ultra Shifter VW Corrado 02A

from

1.298,00 €

Choose tax zone / country of delivery

choose variation

Available immediately

^{impressions and}emotions

^{About the}CAE Ultra Shifter VW Corrado 02A

CAE Ultra Shortshifter for VW Corrado with 02A Gearboxes

Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6-gear transmissions. The coupling system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.

Total height:	approx. 320 mm
Total length:	approx. 220 mm
Dimensions of base plate:	approx. 230 x 115 mm
Shifting travel:	approx. 65 mm
Selector travel (transverse direction):	approx. 65 mm
Weight (complete):	approx. 3,3 kg
Offset of the gear lever knop (back / up):	approx. 60 / 130 mm

After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall. Shifter is delivered as a complete kit including CAE HD gearshift cables. Optimal adapted for 02A transmission in which the gearshift cables arrive side by side on the transmission. 02A transmission with gearshift cables, which lie one above the other must be converted to the other version! Find the suitable gearbox cable bracket (10113WID) under "Accessories" (see below).

Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws and small parts, installation instructions

ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.

Accessories / Spares
