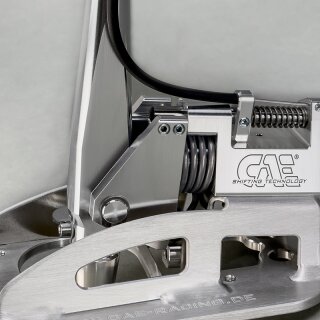

Surface: ALU uncoat.

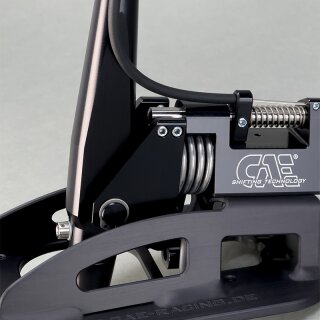

Surface: anod. BLACK

Shiftknob: POM black

Shiftknob: POM white

Shiftknob: Alu grey

Shiftknob: Alu blue

Shiftknob: Alu red

Shiftknob: Alu orange

Shiftknob: Alu silver

Shiftknob: Alu green

Shiftknob: Alu purple

Shiftknob: Alu Gold

CAE Shifter VW Golf 2 02A

Part nr.: 10005HD 02A

Shifter for VW Golf MK 2 02A (02J) Gearbox

Surface
Shiftknob

from

1.255,00 €

(1 Reviews)

Choose tax zone / country of delivery

Available immediately

This item has variations. Please select the requested variation.

CAE Shifter VW Golf 2 02A

from

1.255,00 €

(1 Reviews)

Choose tax zone / country of delivery

choose variation

Available immediately

^{impressions and}emotions

^{About the}CAE Shifter VW Golf 2 02A

CAE Ultra Shifter for Golf MK2 equipped with a VW 02A or 02J cable gearbox.

02J GEARBOX ONLY FOR OLDER VERSION WITH EQUAL CABLE LENGTH
if your cable have different length choose the 02M Shifter

Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6 speed gearboxes The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifters is intended for vehicles without interior equipment or without a centre console.

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam

Total height:	approx. 420 mm
Total length:	approx. 220 mm
Dimensions of base plate:	approx. 230 x 115 mm
Shifting travel:	approx. 65 mm
Selector travel (transverse direction):	approx. 65 mm
Weight (complete):	approx. 3,3 kg
Offset of the gear lever knop (back / up):	approx. 60 / 130 mm

After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall. Shifter is delivered as a complete kit including CAE HD gearshift cables. Optimal adapted for 02A transmission in which the gearshift cables arrive side by side on the transmission. 02A transmission with gearshift cables, which lie one above the other must be converted to the other version!
Find the suitable gearbox cable bracket (10113WID-ALU) under "Accessories" (see below).

Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws and small parts

ATTENTION
TÜV PARTS CERTIFICATE is available for this Shifter.
The legal use in road traffic is therefore possible without any problems after the assessment by a testing organization.
please ask in your country about the applicable regulations
https://cae-racing.de/TUEV-Part-certificate
