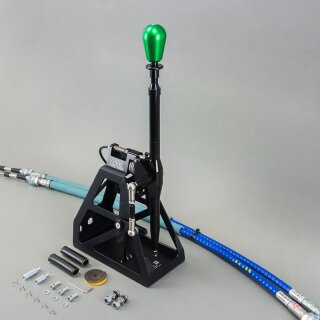

About the CAE Ultra Shifter VW Golf & Jetta 1 & Scirocco1&2 02J/M MQ250/350 gearbox
CAE Ultra Shifter - Optimised for motor sports with the following features:
if your cable have same length choose the 02A Shifter ( See Pictures ) Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6-gear transmissions. The coupling system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.
Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 500 mm |
| Total length: | approx. 210 mm |
| Dimensions of base plate: | approx. 210 x 118 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 3,3 kg |
| Offset of the gear lever knop (back / up): | approx. 60 / 200 mm |
After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall (2 holes diameter 18mm). The original gear lever must be modified. Find modified gear lever kit (10145KIT) and the suitable gearbox cable bracket (10145WID) under "Accessories" (see below).
Delivery: Shifter completely assembled, CAE HD gearshift cable, all screws and small parts.
Installation Manual download: here at the "PDF" Tab
ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
technical data
| Item information | Value |
|---|---|
| Transmission: | 02M/QMQ200MQ250MQ350 |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | VW |
| Car-Model: | Golf 1Scirocco 1Scirocco 2 |
| Item weight: | 3 kg |
scope of supply
1x CAE Ultra Shifter VW Golf & Jetta 1 & Scirocco1&2 02J/M MQ250/350 gearbox
