CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)

Part nr.: 10004HD 02A

CAE Ultra Shifter VW Golf & Jetta 1, Scirocco 1&2 with 02A (02J) Gearbox
Surface
Shiftknob
from
1.255,00 €

(1 Reviews)
  •   Available immediately
CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)

CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)

from
1.255,00 €

(1 Reviews)
  •   Available immediately

impressions and emotions

CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)
CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)
CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)
CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)

About the CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)

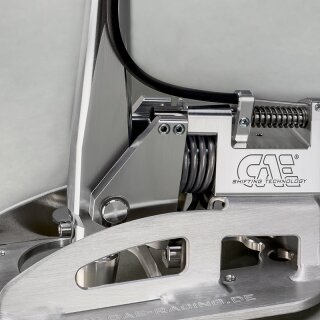

CAE Ultra Shifter for cars equipped with a VW 02A or 02J cable gearbox.


02J GEARBOX ONLY FOR OLDER VERSION WITH EQUAL CABLE LENGTH
if your cable have different length choose the 02M Shifter

Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6-speed gearboxes The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.



Total height: approx. 500 mm
Total length: approx. 210 mm
Dimensions of base plate: approx. 210 x 118 mm
Shifting travel: approx. 65 mm
Selector travel (transverse direction): approx. 65 mm
Weight (complete): approx. 3,3 kg
Offset of the gear lever knop (back / up): approx. 60 / 200 mm


After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall. Shifter is delivered as a complete kit including CAE HD gearshift cables. Optimal adapted for 02A transmission in which the gearshift cables arrive side by side on the transmission. 02A transmission with gearshift cables, which lie one above the other must be converted to the other version! Find the suitable gearbox cable bracket (10113WID) under "Accessories" (see below).

Delivery: Shifter completely assembled, CAE HD gearshift cable, all screws and small parts.
Installation Manual for download you will find here behind the "PDF" tab

ATTENTION

This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.





Accessories / Spares
  •   Available immediately
CAE ALU Gearbox cable bracket for VW 02A (J) Gearboxes
169,00 € *
  •   Available immediately
CAE Shiftknob Alu anodized
62,00 € *
  •   Available immediately
CAE Plastic Gearknob ( POM )
49,00 € *
  •   Available immediately
CAE shift cable kit for VW Golf 1/Polo/Scirocco with VW 02A/J gearbox
403,00 € *

technical data

Item information Value
Transmission: 02A
CAE Shifter Type: H-Pattern shifted
Brand: VW
Car-Model: Golf 1Scirocco 1Scirocco 2
Item weight: 3 kg

scope of supply

1x CAE Shifter VW Golf & Jetta 1, Scirocco 1&2 02A (02J)

Certificates and Downloads

Einbauanleitung (DE) Download
Installation manual (EN) Download
