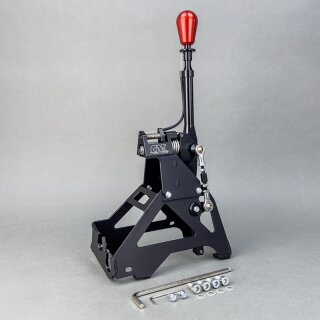

About the CAE Ultra Shifter Toyota GR- Corolla
- 2 piece shifter housing for easy Installation with centerconsole
- shifter fits to stock shiftcables
- Short and super-precise shift travel, exclusively H-pattern.
- The clutch system remains in its original form
- : perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 70 x 55
- The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed for an perfect Surface.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- •The center console itself does not need to be modified; only the cover frame has to be cut out (see picture, green marking)
Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 390 mm |
| Total length: | approx. 235 mm |
| Dimensions of base plate: | approx. 235 x 125 mm |
| Shifting travel: | approx. 70 mm |
| Selector travel (transverse direction): | approx. 55 mm |
| Weight (complete): | approx. 1,05 kg |
| Offset of the gear lever knop (back / up): | depending on vehicle type approx. 20 / 100 mm |
technical data
| Item information | Value |
|---|---|
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | TOYOTA |
| Car-Model: | GR YARIS |
| Item weight: | 1 kg |
scope of supply
1x CAE Ultra Shifter Toyota GR- Corolla , Scope of delivery as shown.
