About the CAE Shifter Suzuki Swift SPORT "NZ/AZ"
CAE Ultra Shifter Suzuki Swift Sport 2010-2017 "NZ (ZC 32s) und RZ/AZ 2018 >> (ZC33s)CAE Ultra Shifter - Optimised for motor sports with the following Features:
Short and super-precise shifting travel, exclusively H-pattern The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel.The shift pattern is confined to approx. 80 x 80 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifters is intended for vehicles with interior/centre console and make use of the mounting points and cables of the original shift lever
Center console himself has not to be modified, just the cover frame.

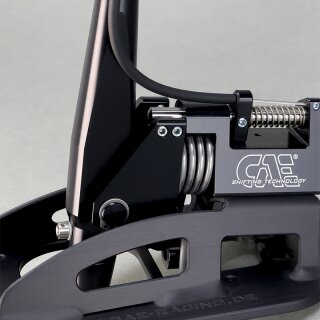

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 480 mm |
| Total length: | approx. 300 mm |
| Dimensions of base plate: | approx. 145 x 300 mm |
| Shifting travel: | approx. 80 mm |
| Selector travel (transverse direction): | approx. 80 mm |
| Weight (complete): | approx. 1,35 kg |
| Offset of the gear lever knop (back / up): | approx. 0 / 145 mm |
Delivery: Shifter completely assembled, all screws and small parts.
Installation Manual for download you will find here behind the "PDF" tab
ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
technical data
| Item information | Value |
|---|---|
| CAE Shifter Type: | H-Pattern shifted |

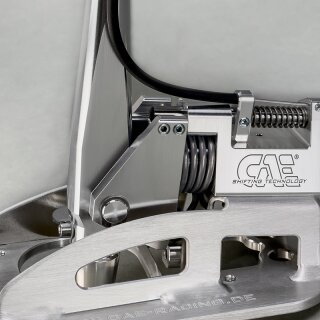

| Surface: | Alu uncoated |
| Brand: | Suzuki |
| Car-Model: | Swift Sport (NZ) |
| Item weight: | 2 kg |
scope of supply
1x CAE Shifter Suzuki Swift SPORT "NZ/AZ"
