About the CAE Ultra Shifter Subaru STI `08-`20 STREET
- Street Version with 2-piece housing and optimized Shift Rod for using with center console !
- Shifter Kit for "STI" with 6 speed ROD Shifted manual transmissions, H-pattern.
- "Street Version" wit 2 piece housing and optimized Shift rod designed for coplete Interior use, center console has to be modified slightly.
- Short and super-precise shifting travel, exclusively H-pattern.
- The clutch system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- centre console have to be slightly modified fo installation
Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 435 mm |
| Total length: | approx. 240 mm |
| Dimensions of base plate: | approx. 198 x 124 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 2,1 kg |
| Offset of the gear lever knop (back / up): | depending on vehicle type approx. 30 / 80 mm |
technical data
| Item information | Value |
|---|---|
| Transmission: | 6 Speed Gearbox |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | SUBARU |
| Item weight: | 2 kg |
scope of supply

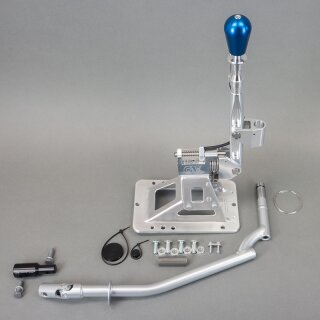

1x CAE Ultra Shifter Subaru STI `08-`20 STREET , Scope of delivery as shown.
