About the CAE Ultra Shifter "UNDERFLOOR" SEAT Ibiza CUPRA 02M
CAE Ultra Shifter - Optimised for motor sports with the following features:
Suitable also for all VW AG platform vehicles PQ25/A05 UNDERPASS VERSION LIKE THE ORIGINAL PART
NO DRILLING FOR CABLE PASS THROUGH, NEARLY NO MODIFICATION OF THE CENTER CONSOLE REQUIRED MUCH LOWER EXPENDITURE FOR INSTALLING, REMOVING OF THE CENTER CONSOLE IS NOT NECESSARY
SHIFTER CAN BE INSATLLED NEARLY INVISIBLE ! Short and super-precise shifting travel, exclusively H-pattern. The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 60 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately.

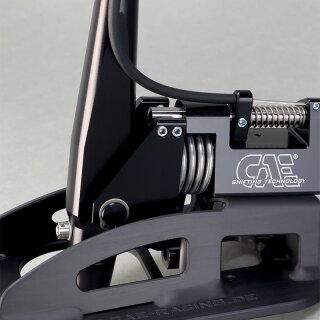

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.| Total height over Tunnel Sheet: | approx. 400 mm |
| Total length: | approx. 300 mm |
| Dimensions of base plate: | approx. 300 x 125 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 60 mm |
| Weight (complete): | approx. 3,5 kg |
| Offset of the gear lever knop (back / up): | approx. 50 / 100 mm |
The original gear levers have to be modified.
In Future the modified levers can be orderd also from us
Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws
Installation instructions for download on this site
ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
technical data
| Item information | Value |
|---|---|
| Transmission: | MQ35002M/Q |
| CAE Shifter Type: | H-Pattern shifted |

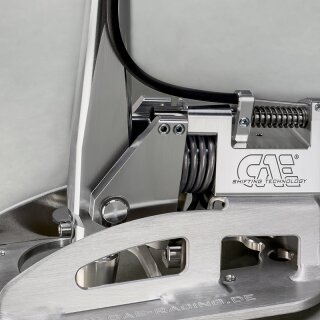

| Surface: | Alu uncoated |
| Brand: | Seat |
| Car-Model: | Ibiza CUPRA (6J) |
| Item weight: | 4 kg |
scope of supply
1x CAE Ultra Shifter "UNDERFLOOR" SEAT Ibiza CUPRA 02M
