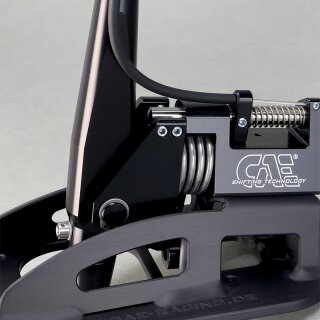

About the CAE Ultra Shifter for Scion FR-S
CAE Ultra Shifter - Optimised for motor sports with the following features CAE Shifter for Scion FR-S with manual 6 Speed gearbox, standard H-pattern Short and super-precise shifting travel, exclusively H-pattern. The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 & 6mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Complete kit for adaptation stock shift rod with all small parts and fastening material centre console have to be slightly modified fo Installation Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam| Total height: | approx. 380 mm |
| Total length: | approx. 225 mm |
| Dimensions of base plate: | approx. 225 x 125 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 1,05 kg |
| Offset of the gear lever knop (back / up): | approx. 20 / 80 mm |
Delivery: Shifter completely assembled, Cover sheet with rubber boot, all screws and small parts
Installation instructions for download: see below
ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
