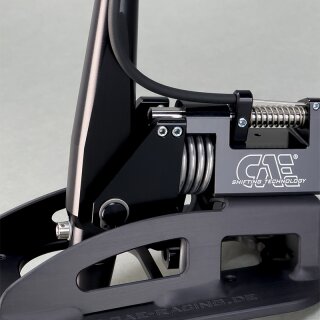

About the CAE Shifter MINI R5X
CAE Ultra Shifter - Optimised for motor sports with the following features:
- Shifter for MINI R5X with 5 and 6 speed transmissions for using original gearshift cables after facelift.
- Fitted for all R53 from 2004/01 (Facelift) & R56.
- Pre facelift 53 cars up to 2003/12 require shiftcables of R53 facelift. ( BMW Art Nr 2511 7 547 370 & 371)
- For 5 Speed Midland gearboxes a special cable set is required (item no. 10234 EUR 399,-) this is only made to order, please inquire if necessary.
- Short and super-precise shifting travel, exclusively H-pattern.
- The coupling system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and black anodized for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 480 mm |
| Total length: | approx. 288 mm |
| Dimensions of base plate: | approx. 288 x 120 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 1,15 kg |
| Offset of the gear lever knop (back / up): | approx. 60 / 160 mm |
| Gear knob height: | approx. 430 mm |
For installing you have to remount the exhaust and heattplates. Shifter will be mounted from downside. No other modifications necessary at the car. Center console have to be modified. Switches have to move away.
technical data
| Item information | Value |
|---|---|
| Surface: | Alu uncoatedblack anodizedgrey anodized |
| Brand: | BMWMini |
| Car-Model: | R5XR6X |
| Item weight: | 2 kg |
scope of supply
1x CAE Shifter MINI R5X , Scope of delivery as shown.
