Surface: ALU uncoat.

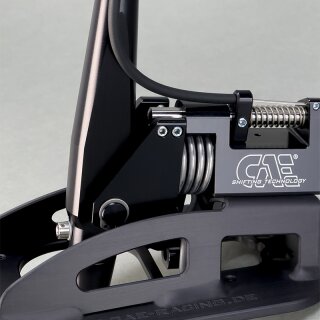

Surface: anod. BLACK

Shiftknob: POM black

Shiftknob: POM white

Shiftknob: Alu grey

Shiftknob: Alu blue

Shiftknob: Alu red

Shiftknob: Alu orange

Shiftknob: Alu silver

Shiftknob: Alu green

Shiftknob: Alu purple

Shiftknob: Alu Gold

CAE Ultra Shifter Mazda MX5 NC 6-Speed

Part nr.: 10068 NC 6G

CAE Ultra Shifter for MX 5 NC with 6 Speed Gearbox NC1/2/3

Surface
Shiftknob
Diameter Gearbox Joint

from

795,00 €

Choose tax zone / country of delivery

Available immediately

This item has variations. Please select the requested variation.

CAE Ultra Shifter Mazda MX5 NC 6-Speed

from

795,00 €

Choose tax zone / country of delivery

choose variation

Available immediately

^{impressions and}emotions

^{About the}CAE Ultra Shifter Mazda MX5 NC 6-Speed

CAE Ultra Shifter for MX 5 NC with 6 Speed Gearbox
Gearbox Joint diameter 22,5 or 24,6mm !!!

Short and super-precise shifting travel, exclusively H-pattern. The clutch system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 55 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Complete pre mounted shifter for direct mounting to the gearbox with all small parts and fastening material. Shifters is intended for vehicles with Center console, it have to be modified sligthly Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.

Total height:	approx. 300 mm
Total length:	approx. 130 mm
Dimensions of base plate:	approx. 120 x 85 mm
Shifting travel:	approx. 65 mm
Selector travel (transverse direction):	approx. 55 mm
Weight (complete):	approx. 1,05 kg
Offset of the gear lever knop (back / up):	depending on vehicle type approx. 0 / 100 mm

Delivery: Shifter completely assembled, all screws and small parts; Surface sealant.

Installation Manual for download you will find here behind the "PDF" tab.

ATTENTION

This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
