About the CAE Shifter Ford Focus MK 3 RS & ST
- Short and super-precise shifting travel, exclusively H-pattern.
- The coupling system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65x 55 mm.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops, Lever middle Position and reverse gear stop adjustable separately.
- Shifters is intended for vehicles with complete centre console and make use of the mounting points of the original shift lever.
- Easy installation
- Nearly no modifying of the center console and no cutting/ exchanging of the Stock cables cequired,
the stock Shift boot dont fits any more - All systems are delivered with all small parts and fastening material
- Optionaly available in all black anodized
-
Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam
Total height: approx. 335 mm Total length: approx. 280 mm Dimensions of base plate: approx. 280 x 125 mm Shifting travel: approx. 65 mm Selector travel (transverse direction): approx. 55 mm Weight (complete): approx. 1,5 kg Offset of the gear lever knop (back / up): approx. 0 / 90 mm
technical data
| Item information | Value |
|---|---|
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | Ford |
| Car-Model: | Focus 3 RS |
| Item weight: | 2 kg |
scope of supply

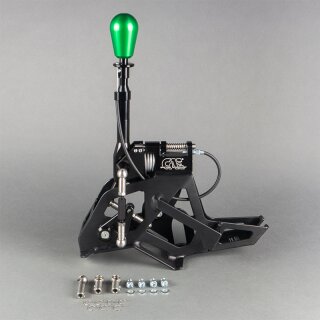

1x CAE Shifter Ford Focus MK 3 RS & ST , Scope of delivery as shown.
