About the CAE Shifter Citroen Xsara & Peugeot 306 / BE1, BE3, BE4

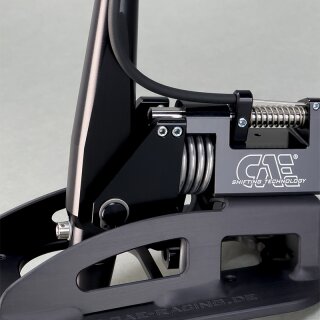

CAE Ultra Shifter - Optimised for motor sports with the following features:
Universal kit for Citroen Xsara and Peugeot 306 rod gear transmissions of type BE1, BE3 and BE4, suitable for 5 & 6 speed transmissions. Shifter is delivered as a complete kit including length optimized CAE HD gearshift cables. Short and super-precise shifting travel, exclusively H-pattern. The coupling system remains in its original form. Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm. Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever. Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish. Problem-free shifting of gears under stress or in curves. Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down. Right/left stops and reverse gear stop adjustable separately. Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions. Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.
| Total height: | approx. 430 mm |
| Total length: | approx. 220 mm |
| Dimensions of base plate: | approx. 220 x 110 mm |
| Shifting travel: | approx. 65 mm |
| Selector travel (transverse direction): | approx. 65 mm |
| Weight (complete): | approx. 2,05 kg |
| Offset of the gear lever knop (back / up): | approx. 70 / 170 mm |
Not suitable for vehicles with servo booster pump on the transmission! This would have to be relocated. In addition, the heating water supply would have to be changed.
Delivery: Shifter completely assembled, CAE HD gearshift cable, transmission steering unit, all screws
Installation manual for downlaod here at the bottom of this site
ATTENTION
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
