About the CAE Ultra Shifter BMW E8/9X "3XS"
We have further developed 85% of all components of this shifter to make it perfect
Shifter fits to following BMW Models:
- 1´E88 135i N54
- 1´E82 135i N54
- 3´E90 335i N54
- 3´E90 LCI 325D N57
- 3´E90 LCI 330 D
- 3´E90 LCI 335i N54
- 3´E91 335i N54
- 3´E91 LCI 325D N57
- 3´E91 LCI 330 D
- 3´E91 LCI 335i N54
- 3´E92 LCI 330 D N57
- 3´E92 335i N54
- 3´E92 LCI 325 D
- 3´E92 LCI 330 D
- 3´E92 LCI 335 D
- 3´E93 LCI 330 D N57
- 3´E93 335i N54
- 3´E93 LCI 325 D
- 3´E93 LCI 330 D
- Complete kit for adaptation to BMW E8/9X with 6 speed manual gearbox standard H-pattern, including CAE shift rod "3XS" and all small parts and fastening material. for assignment, see the table above
- No drilling into the Tunnel required !
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift knob close to the steering wheel.
The shift pattern is confined to approx. 75 x 75 mm, therfore super-precise shifting, exclusively H-pattern. - The clutch system remains in its original form.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3/ 6mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated 3/4 position spring, ensuring perfect feedback when changing alleys while shifting up and down.
- 1/2 - 5/6 and reverse alleys adjustable separately.
- Shifter is intended for vehicles with interior equipment, he can be installed nearly invisible

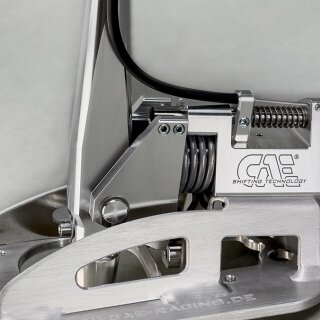

The centre console have to be modified for fitting over the shifter. Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam
| Total height: | approx. 375 mm |
| Total length: | approx. 190 mm |
| Dimensions of base plate: | approx. 180 x 115 mm |
| Shifting travel: | approx. 75 mm |
| Selector travel (transverse direction): | approx. 75 mm |
| Weight (complete): | approx. 1,66 kg |
| Offset of the gear lever knop (back / up): | depending on vehicle type approx. 0 / 100 mm |
technical data
| Item information | Value |
|---|---|
| Transmission: | 6 Speed GearboxBMW -ZFBMW |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | BMW |
| Car-Model: | E92 M3 |
| Item weight: | 2 kg |
scope of supply
1x CAE Ultra Shifter BMW E8/9X "3XS" , Scope of delivery as shown.
