About the CAE Ultra Shifter Honda CIVIC TYPE R FL5
New: CAE Ultra Shifter for the 11th generation Honda Civic and 5th generation (Acura) Integra
Suitable for LHD and RHD.
Preorder now! Earliest delivery from end of Sept 26 !
Fitting to following models :
2022+ 11th Gen Honda Civic Base, Sport, Sport Touring & Si
2023+ 11th Gen Honda Civic Type R
2023+ 5th Gen Acura Integra A-Spec & Type S
!!! For cars equipped with the optional rear-seat climate system, the air tube beneath the center console must be removed !!!
CAE Ultra Shifter – optimised for motor sports with the following features:
- Short and super-precise shifting travel, exclusively H-pattern
- The clutch system remains in its original form.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel.
The shift pattern is confined to approx. 75 × 55 mm. - Activation of the reverse gear lock via cable reel from the shift lever. Accidental shifting into reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made of laser-cut, 3 mm thick AlMg3 aluminium. The parts are joined using the TIG welding process and brushed for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing gates while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: all systems are delivered with all small parts, fastening material and detailed installation instructions.
- The shifter is intended for vehicles with interior/centre console and makes use of the mounting points and cables of the original shift lever.
No modification of the shift cables required – this ensures 100 % reversibility.
| Total height | approx. 480 mm |
| Total length | approx. 300 mm |
| Dimensions of base plate | approx. 145 × 300 mm |
| Shifting travel | approx. 75 mm |
| Selector travel (transverse direction) | approx. 55 mm |
| Weight (complete) | approx. 1.35 kg |
| Offset of the gear knob (back / up) | approx. 0 / 95 mm |
technical data
| Item information | Value |
|---|---|
| Transmission: | 6 Speed Gearbox |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | HONDA |
| Car-Model: | Civic FK8 Type "R"Civic FL5 Type" R"Integra 5th gen |
| Item weight: | 2 kg |
scope of supply

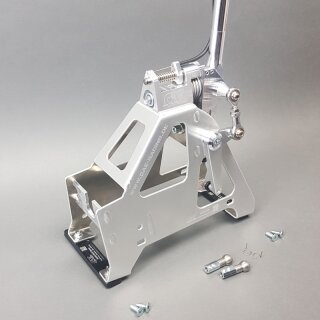

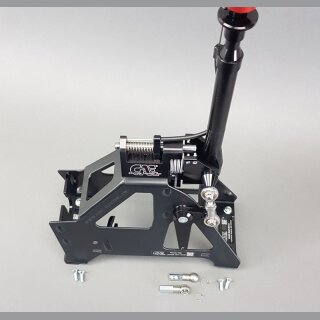

1x CAE Ultra Shifter Honda CIVIC TYPE R FL5 , Scope of delivery as shown.
